Subflows (Subprocesses)

Introduction

In this guide, you'll learn how to use subflows (subprocesses) in Joget DX. Subflows allow you to call one process from within another, enabling more modular and complex workflows. This example will demonstrate how to set up a subflow where Process 1 calls Process 2, then seamlessly resumes its own execution.

How does it work?

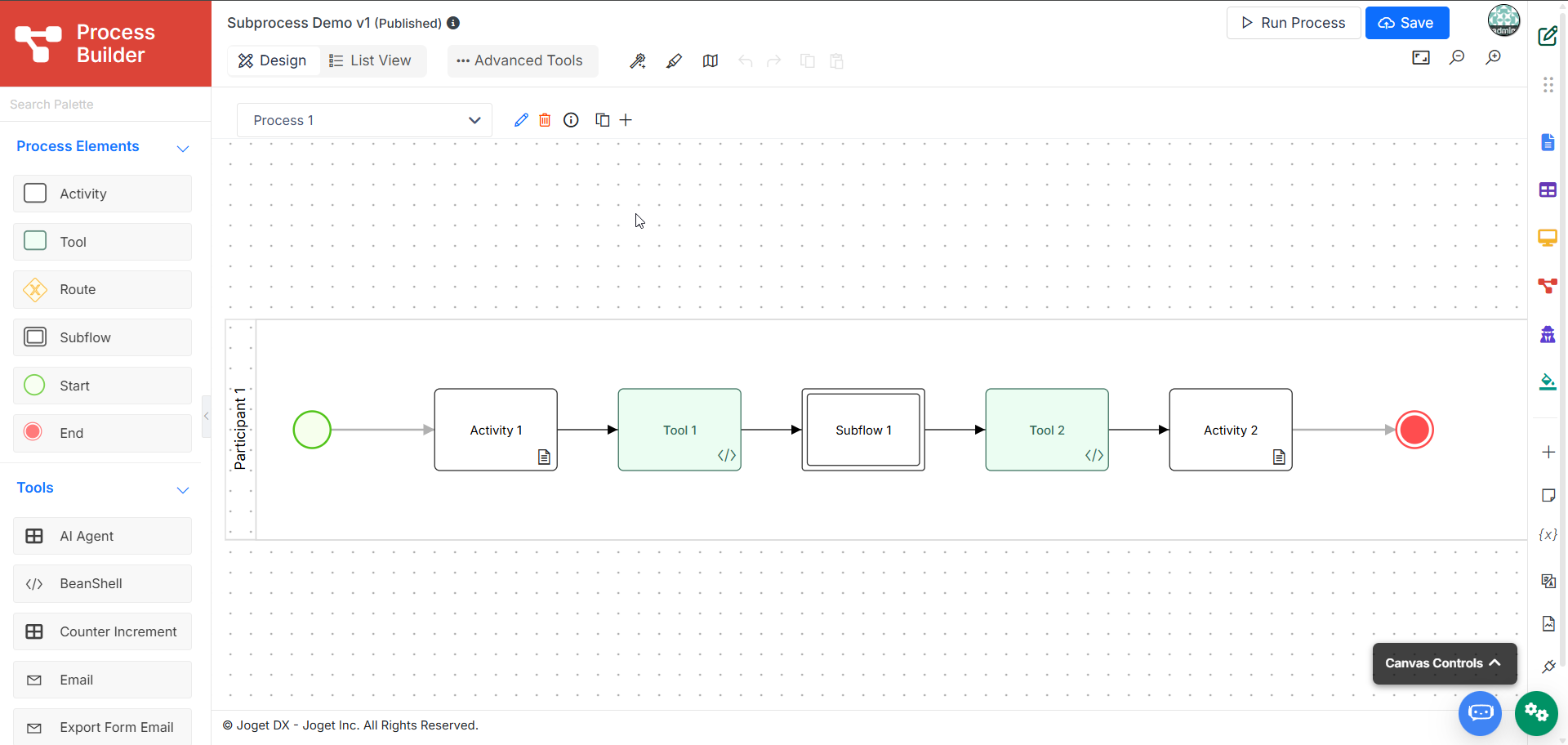

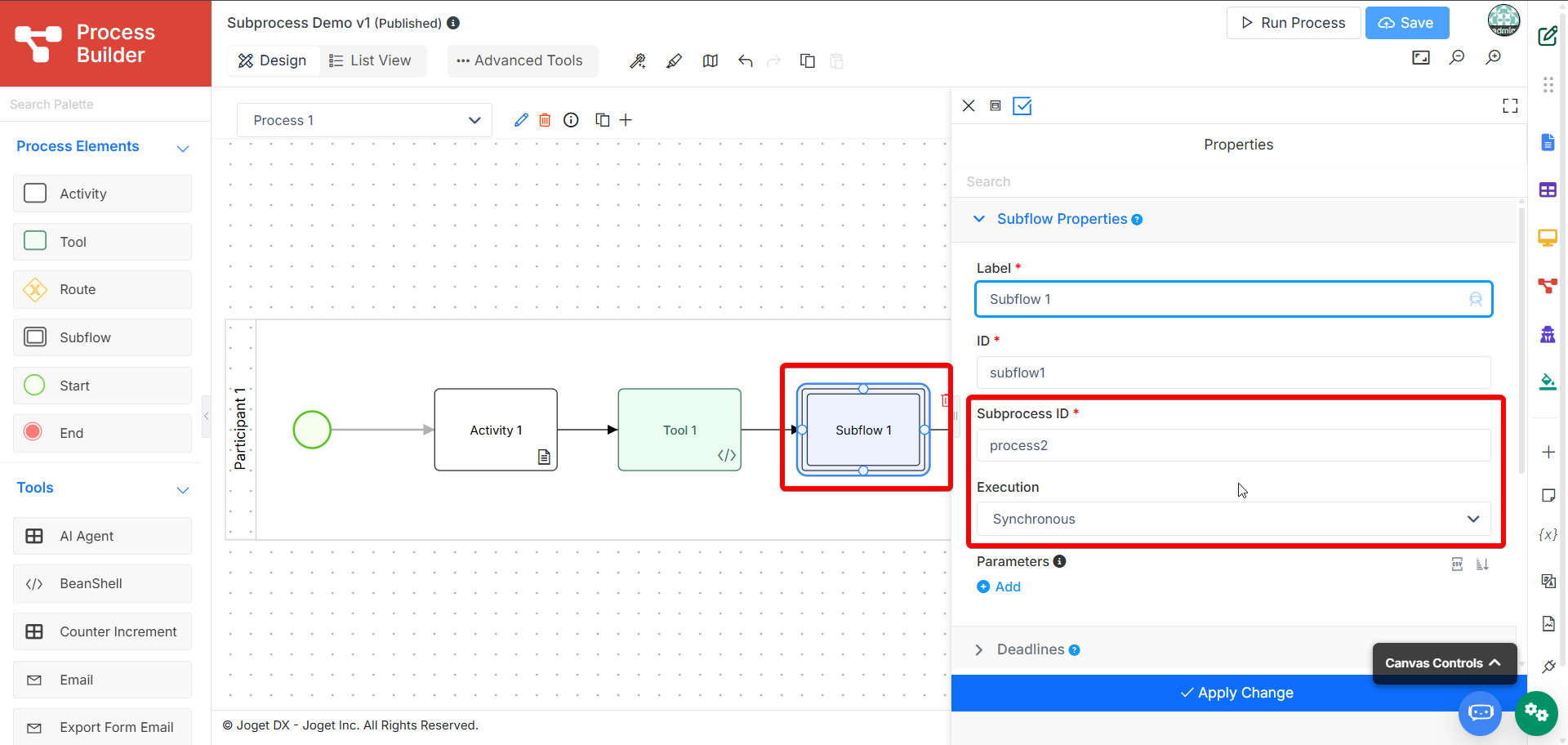

1. Process 1 contains a subflow named Subflow 1, which is configured to call Process 2 synchronously.

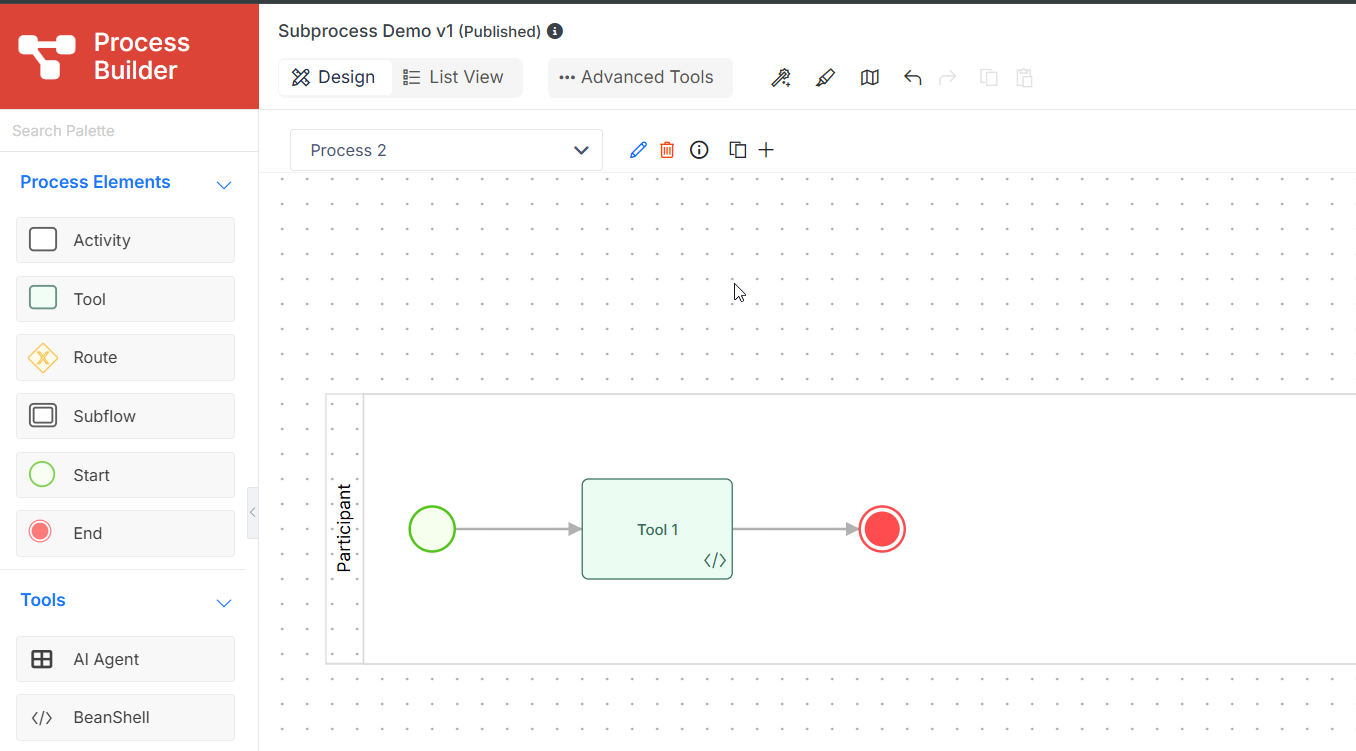

2. Process 2 runs its own independent workflow.


Expected Outcome

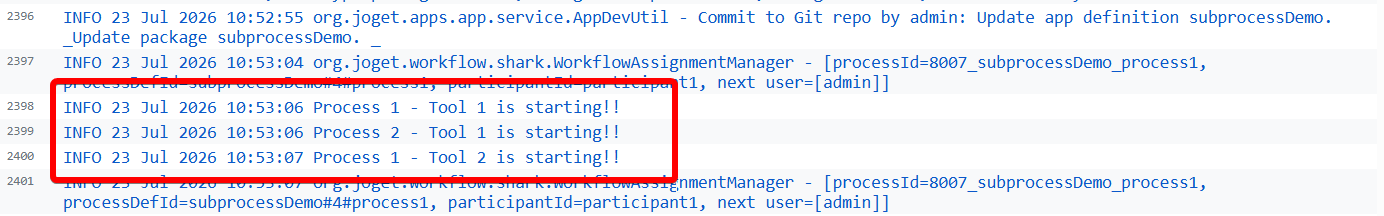

When Process 1 runs, it executes its Tool 1, triggers Process 2 (which runs its Tool 1), and then executes its Tool 2.

Related documentation

• Design a Process
• Sample Application with Subflow
• Flow and Subflow

Download sample app
